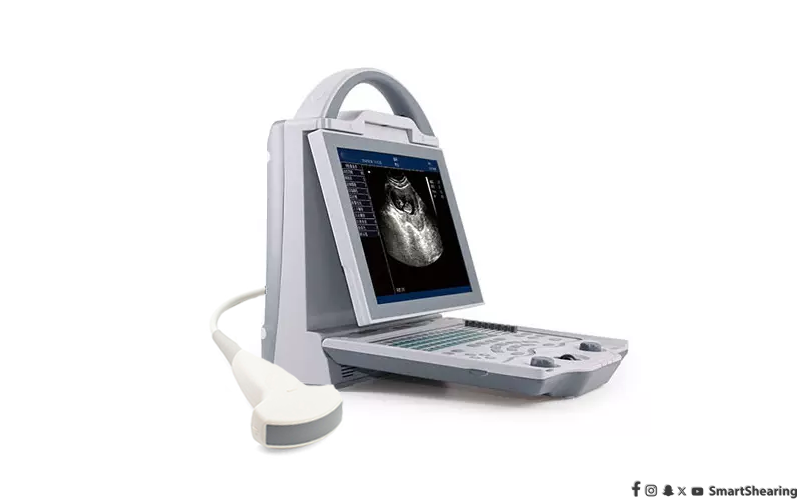

Xtra Plus Ultrasound

Product Description

• High-resolution 64-channel multifrequency transducer, engineered with premium matching and backing layers to ensure minimal beam width—providing superior resolution across all imaging planes and enhanced noise reduction for a high signal-to-noise ratio.

• 10.4″ high-resolution color LED backlit display, delivering exceptional contrast for easier acquisition of diagnostic images.

• Backlit keyboard enables operation in dark environments.

• Adjustable screen brightness for optimal viewing comfort.

• Weight: 4.5 kg

• Dimensions: 256 × 150 × 326 mm

Technical Specifications

• Adjustable imaging depth, up to 236 mm (dependent on transducer selection), accommodating both superficial and deep anatomical structures.

• Gain range: 0–127 dB

• Contrast range: 27–90 dB

• Grey scale: 256 levels – Offers flexibility in contrast and grey range, allowing customization for specific applications:  • Wide grey range enhances subtle texture differences (e.g., abdominal scans)  • High contrast enhances visibility of small structures (e.g., early pregnancy sacs)

• 8 TGC (Time Gain Compensation) levels, enabling fine-tuned gain adjustment—especially beneficial when imaging fluid-filled structures like the bladder or cystic formations.

• Frame rate: 30 fps – Ensures smooth, real-time imaging, crucial for visualizing moving targets such as fetal structures or cardiac motion.

• Imaging modes: B, 2B, 4B, B/M, M-Mode – M-Mode remains essential in veterinary echocardiography and select human applications (e.g., fetal heart, IVC assessment).

• 8 pseudo color options, aiding in enhanced visualization of anatomical details, particularly in early pregnancy or cardiac imaging.

• Cine loop: 256-frame capacity with roller ball navigation for reviewing recorded clips after image freeze.

• Image storage: Built-in 4 GB hard disk – Stores approximately 5000 images for long-term archival.

• Needle guide function, featuring adjustable on-screen guidelines—ideal for interventional procedures such as biopsies.

• Measurement package includes standard calculations: distance, area, volume, and perimeter.

• Calculation software supports:  • Basic cardiac assessment (for screening, not advanced pathology)  • Gynecology  • Obstetrics (gestational age, amniotic fluid, crown-rump length)  • Urology (residual urine volume, prostate volume)

2-year warranty
